Rock Triaxial / Hoek Testing Machine

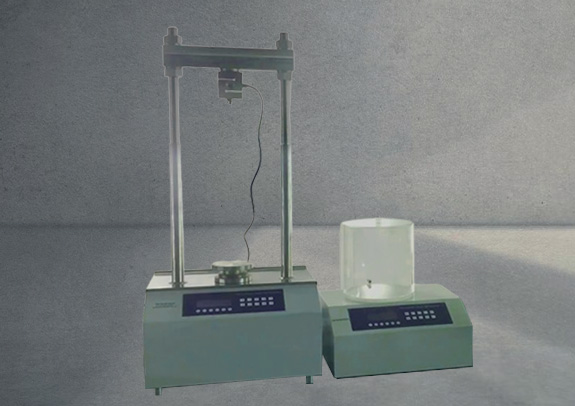

Table top two pillar Load Frame with high quality machined columns with threading to facilitate movement of crosshead. It comes in capacities of 10, 30, 50 and 100 kN with infinitely variable speed from 0.00001 to 99.99999 mm/min which can be set using the membrane keypad and provision for mounting load cell, LVDT etc. It can accommodate universal type triaxial cell for 38, 50, 75, 100 and 150mm diameters ( depending on the capacity of the frame).
Cell and back pressure is applied by an integral microprocessor based control system with a large easy to read 240*192 character LCD in English. Required cell/back pressure is applied by one click using the 20 buttons keypad. The cell/back pressure control system features automatic water filling and drain and measurement of volume change
Software (Fully automatic version)
- B-value checking
- 16-bit Data acquisition
- Multiple stage triaxial test
- Automatic data processing/analysis
- Truly independent confining pressure and back pressure
- Windows® software for test control and post-test processing
- Computer-automated control of testing- not just data logging
- Comply with various geotechnical specifications (IS/BS/ASTM)
- With one computer, control multiple sets of triaxial testing systems
- Isotropic consolidation test, including measurement of volume changes
- UU, CU and CD tests, including pore pressure measurement and volume change measurement down to 1mm³(0.001cc)
