Ultrasonic Cross Hole Logging
Modular wireless instrument for cross-hole surveys on foundation poles.

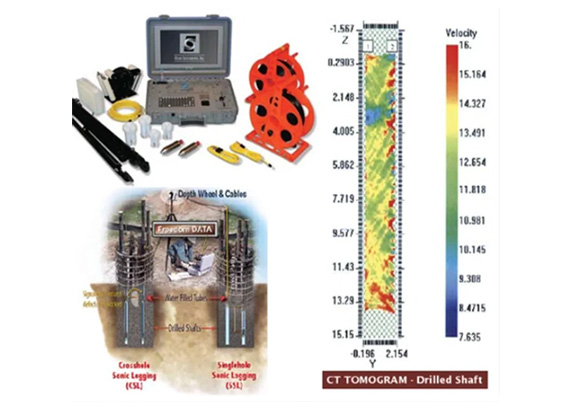

WCH-4 introduces a new concept of instrument for cross-hole tests on foundation poles. More than an instrument meant in classic sense,
WCH-4 is a modulare system for cross-hole surveys on foundation poles. The core are motorized reels electronically controlled on which
are mounted hig-power borehole probes to cross-hole investigations on foundation poles, diaphrams, and all those infrastructural cement or
concrete works that could be verified by cross-hole tests, that is the discent in prepared tubes at the moment of the casting and
subsequently filled by water.
Each reel of WCH-4 system integrates a motorized probe with cable 60mt, and all the electronics control which supervises automatic management of the probes during the descent/ascent of the probes (cross-hole) and saving data.
Strenghts
- Easy to use system by a single operator
- Intuitive to use software and step-by-step guide
- Easy to carry in a unique case equipped by trolley
