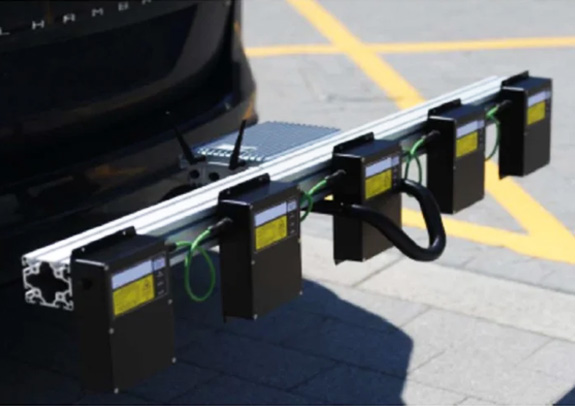

Laser Road Surface Profiler

The Laser based Road Surface Profilometer system offered by Intellitest uses a combined 6 axis low noise accelerometer and gyro system to compensate for vehicle pitch and roll. This leads to lower drift in the assessment of vehicle’s motion relative to the road and therefore a more accurate laser compensation calculation giving more repeatable results between runs.

Specifications

• USB Interface
• Less than 10 kg
• Report in MS-Excel
• Better than 5 meters
• High speed laser optical triangulation
• Optical Encoder to be fixed on vehicle wheel
• i-Pad with wireless connection to control unit
• As per user requirement from 01 to 41 Laser
• Core xi5 / 8 GB / 256 GB drive and touch screen
• For more than 15000 km depend on accessories
• User may mark the road defect and inventory during survey
• Test can be performed from 20 to 140 km / h vehicle speed
• Laser Class 3B according to EN 60825-1:2014 and 21 CFR 1040.10 and 1040.11
• Roughness, Rutting, Texture, Longitudinal profile, transverse profile, depend on laser configuration
