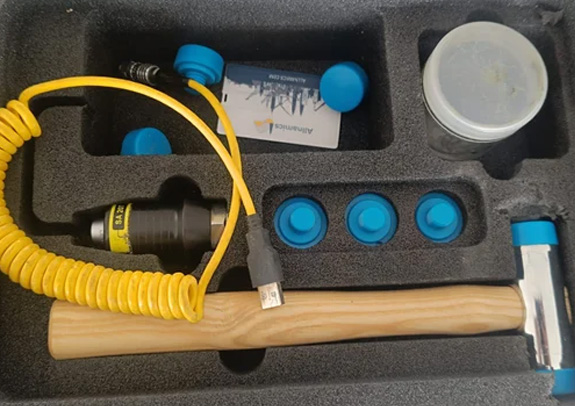

Pile Integrity Tester

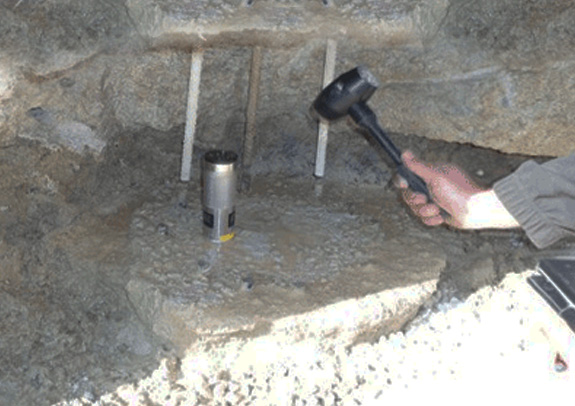

Low Strain Impact Testing has been developed as Sonic Integrity Testing in the Netherlands in the 1960s. It’s a fast and cost-effective testing method to determine defects in piles, to check the condition of deep foundation elements (as built versus designed or desired). Major cracks, necking and soil inclusions can be determined and indicates the pile length.
Features
- Robust design
- 24 bit conversion
- Fast and Accurate
- Sample rate 50 kHz
- Class IP66 housing
- Intelligent sensor (USID)
- SIT-USB, high quality data acquisition system

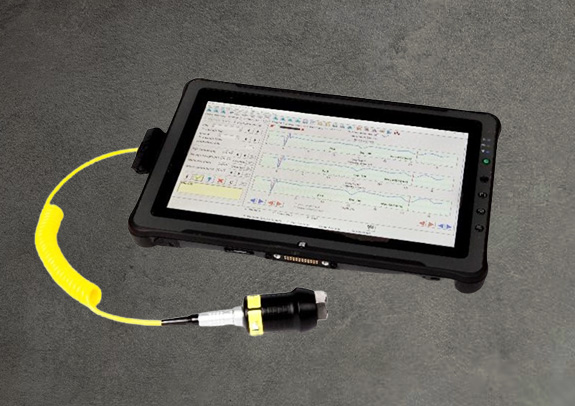

- Software program for monitoring, processing and reporting included
- In compliance with ASTM Standard D5882-16, EA Pfähle 2012, CUR-Aanbeveling 109:2013, AFNOR NF P 94-160-2 and NF P 94-160-4.
